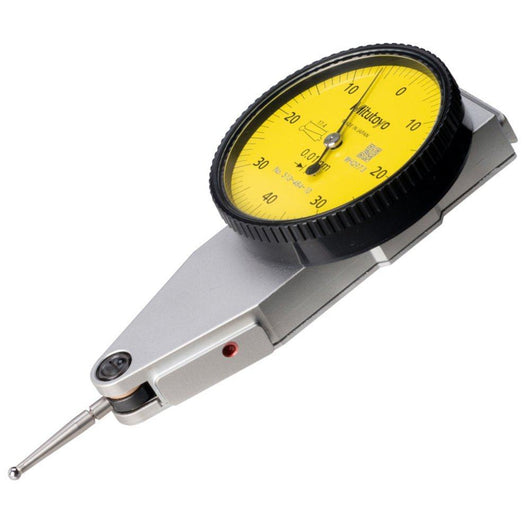

Mitutoyo Universal Lever Dial Test Indicator 0.8mm with Clamp

This product is now discontinued, please contact us for possible alternatives.

• Drastically enhanced durability, sensitivity and visibility.
• Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators
• Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal
• The glare-free flat crystal face has a scratch-resistant coating
• High-sensitivity and quick response due to low-friction jewelled bearings
• A versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications
• Metric only
• Range: 0.8mm, Resolution: 0.01mm

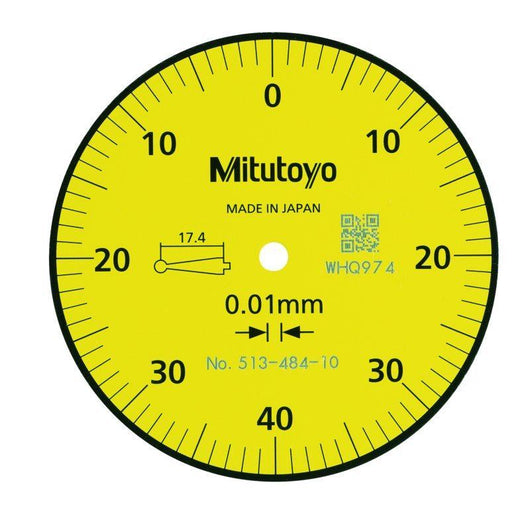

• Repeatability: ±.3µm, Graduation: 0-40-0
• Measuring force: 0.01-0.3 N, Contact point: Thread M 1.7 x 0.35

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Key Specifications

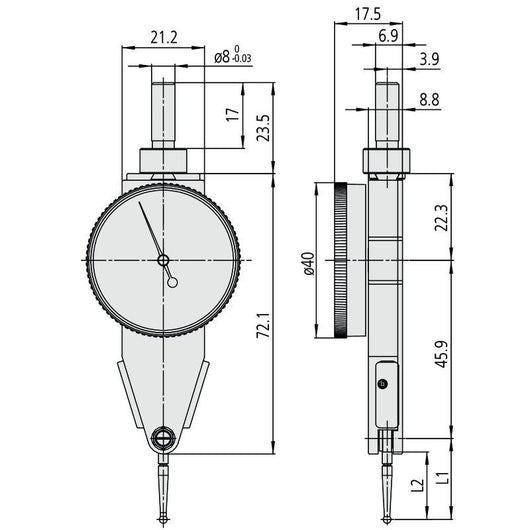

Clamping Shaft Diameter: 8mm (3/8")

MPE any 10 scale divisions: 5

MPE any half revolution: 6

MPE measuring range: 8

Hysteresis: 3
