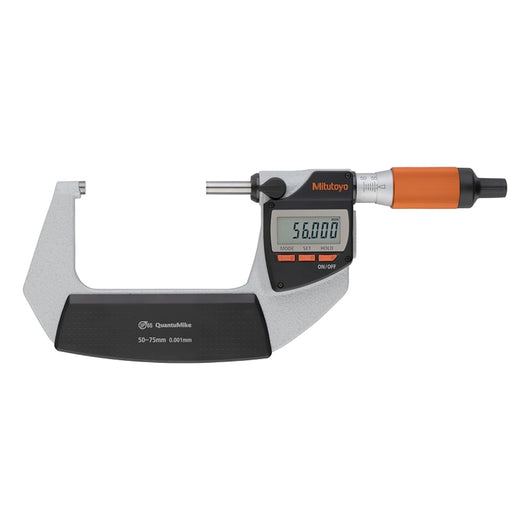

Mitutoyo QuantuMike 50-75mm Digital Micrometer - IP65 - Digimatic S1 Interface - Metric Spindle

• Faster measurement is achieved by using a coarser thread which feeds the spindle by 2mm per thimble rotation.
• Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S1 interface) is possible.
• Ratchet thimble mechanism and a small design ensures easy single-handed or stand operation.
• Equipped with a calibration schedule warning function.
• GO/±NG judgement is performed by setting the upper and lower tolerance limits.
• Approach speed warning function for reliable measurements.
• Extraordinary battery life of 2 years (4000 h).
• Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
• A function lock protects the display against unauthorised use.

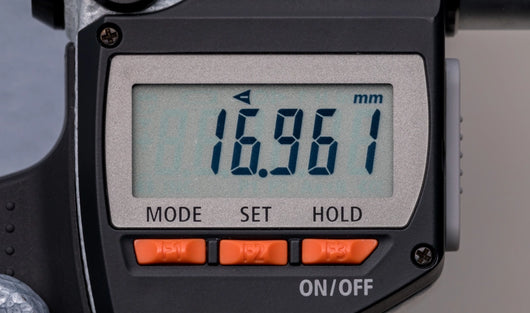

• Visibility is improved by enlarging the display unit.

Key Specifications

IP65 protection rating

Resolution 0.001mm

Max permissible error J MPE:  Â±2 µm

Spindle: with spindle lock, ø 6.35 mm, spindle pitch 2 mm

Measuring Force: 7 - 12 N

Features

ON/OFF

ABS / INC (INC ZERO)

Auto Power OFF after 20 min. non use

Low voltage alarm

Function lock

HOLD

PRESET

GO/±NG judgement

Calculation function (with formula)

Customising keys

Calibration warning function

Mass: 465 g

Product contains micrometer, box, spanner, CR2032 battery, and certificate of inspection.
