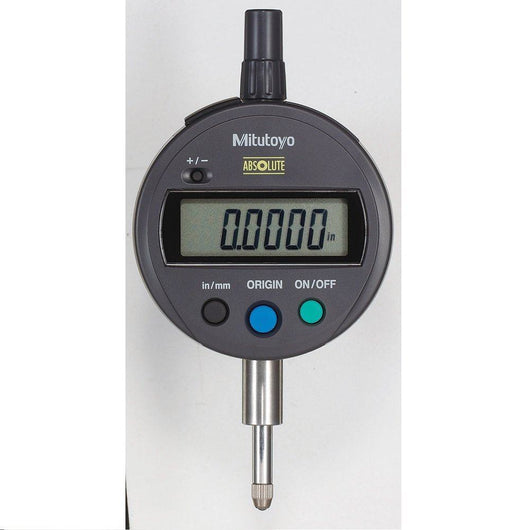

Mitutoyo Digital Indicator ID-S ANSI/AGD Inch/Metric 0.5" 0.0005" Flat Back 543-783B

• The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
• You can access all functions by using the large, user-friendly buttons on the front of the indicator.
• Large character height of 9 mm provides good readability.
• Exceptional battery life.

• As compact as standard Series 2 dial indicators
• After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life
• Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors
• SPC data output
• IP42 Dust Water Protection
• Alarm: Low Voltage, Counting value composition error, Over-flow error
• Absolute electrostatic capacitance type liner encoder

Key Specifications

No. Lug back plate: 543-783

Range: 0.5"/12.7 mm

Range: 0.5"

Digital step: 0.0005"/0,01 mm

Max. Permissible Error E MPE: 0.001"/0.02 mm

H MPE (Hysteresis): 0.001"/0.02 mm

R MPE (Repeatability): 0.0005"/0.01 mm

Type: ASME/ANSI/AGD Standard

Measuring force: ≤ 1.5 N

Protection: IP42

Mass_ 140 g

Mass lug/plain: 140/150 g

Display: LCD, character height 9 mm

Max. response speed: Unlimited

Alarm: Low voltage, counting value composition error

Stem Ø: 9.52 mm

Contact point: Carbide ball, thread # 4-48 UNF

Battery life: approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type)

Power supply: 1 battery SR-44

Data output: Yes

ON/OFF: Yes

ORIGIN (ABS-Zero): Yes

Counting direction switchable: Yes

Digital/Analog_ Digital

Inch-Metric: Inch/Metric

Delivered: Including 1 battery

Typical Applications

Ideal for the following applications: Digital Gauging, Fabricating, Manufacturing, Machining
