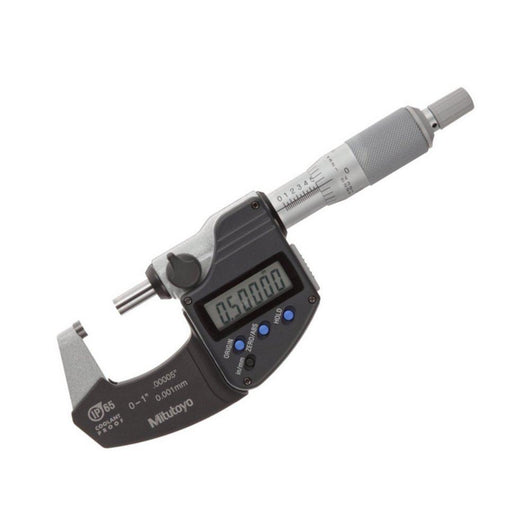

Mitutoyo 0-25mm IP65 Digital Micrometer with SPC Output - 293-330

This product has been discontinued. Please contact us for alternatives.

• IP65 protection level, enabling use in environments exposed to cutting oil - Oil-resistant materials are used in all plastic components
• Anti-corrosion treatment is required after use
• Anti-corrosion treatment is required after use. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions
• A ratchet stop guarantees repeatable measurement
• Digimatic data output

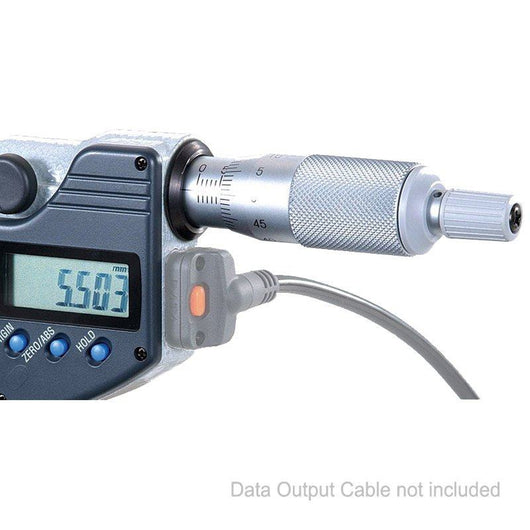

• Measurement data output function is available with a water-resistant connection cable (Sold separately)
• Auto power ON/OFF function
• Certificate of Inspection is included - This certificate is undated and therefore cannot be used as a calibration certificate
• Functions - Origin-set, Zero-set, Preset, Inch/mm, Function Lock, Data Hold, Automatic Power On/Off, Data Output, Low Voltage alarm, Counting Value Composition Error alarm

Mitutoyo 0-25mm IP65 Digital Micrometer with SPC Output - 293-330

Key Specifications

• Range - 0-25mm/ 0-1".
• Actual Range - 0-25.4mm
• Resolution - 0.001mm / .00005"
• Data Output - Yes.
• Accuracy - ±1µm / .00005".
• Flatness - 0.3µm / .000012".
• Measuring Faces - Carbide.
• Parallelism - 1µm / .00004".
• Protection - IP65
• Battery - SR44
