SKU:
DRO-GS500-70-1UM

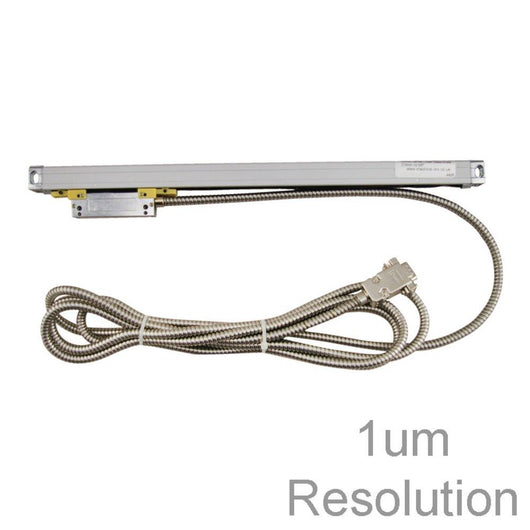

M-DRO Slim - 70mm (2 3/4") Reading Length Optical Linear Encoder 1um Resolution
This Item Is Discontinued
This product has been discontinued. Please contact us for Alternatives.
- Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting.
- The compact profile allows for installation in limited space applications, for example the cross slide on a lathe or smaller milling machines
- The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware
- The M-DRO GS500 Slim profile precision optical glass grated scale with 1 micron resolution.
- Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting.
- The compact profile allows for installation in limited space applications, for example the cross slide on a lathe or smaller milling machines.
- The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware.
- Pre-fitted with armoured cable and connector. Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

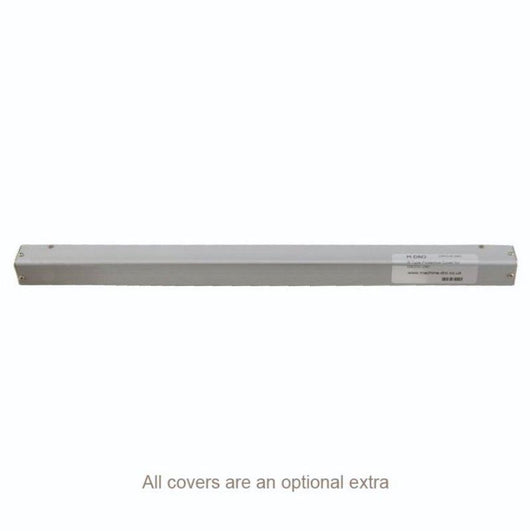

- Optional protective cover are available a two part cover with a mounting spar, for simple installation on a non-machined face.
- For compatible display consoles please check the display console compatibility guide below. Please feel free to contact our technical staff for assistance.
Key Specifications
- Reading Length - 70mm (2 3/4")
- Resolution - 0.001mm (1 Micron)
- Encoder Type - Optical
- Encoder Output - TTL (A, B and Z) Quadrature
- Cable Type - Flexible Armoured
- Cable Length - 3 Metres
- Protection - IP53
