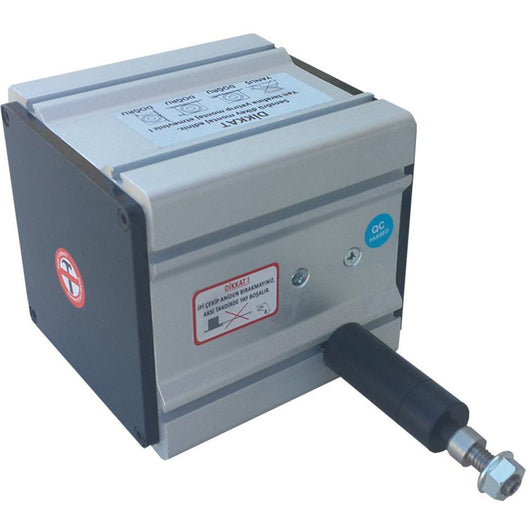

AWE 220 Series 3000mm Travel Draw Wire Encoder - Quadrature Output

• A compact draw wire encoder with 3000mm travel
• Quick and easy installation without the need for linear guidance
• Resistant to shocks and vibration
• Stud mounting on draw wire and m4 threaded mounting holes in the base of the body
• Industrial standard quadrature output (other options also available)
• High operating speed 0.5m/s
• High strength stainless steel wire with a diameter of 0.5mm
• Resolution: 0.04mm (final resolution calibration required on install)
• Quadrature output (potentiometric, voltage 0-10v or current 4-20mA options available)
• Linearity: ± %0.25 full scale

Applications include: wood, glass or stone cutting machinery, telescopic cranes, reach trucks, forklifts, lifting platform equipment, elevators, material handling, hydraulic cylinder position measurement, pipe bending machines, factory automation and robotic process control.

Key Specifications

Rod end thread: M8

2.4N maximum retraction force

3m cable with flying leads (contact us for connector options)

Compatible with DRO-MG-PDU-1X and DRO-MG-MDU-1UN display consoles, please contact us for further asistance
